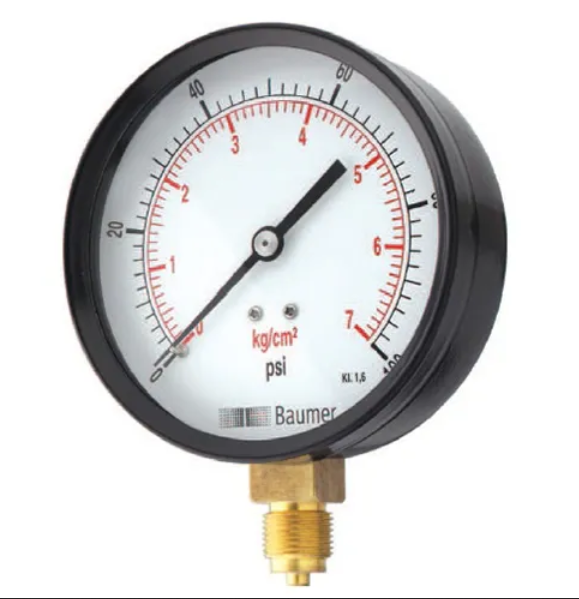

Pressure Gauge
Product Information


A pressure gauge is a fluid intensity measurement device. Pressure gauges are required for the set-up and tuning of fluid power machines, and are indispensable in trouble shooting them. Gauges help to ensure there are no leaks or pressure changes that could affect the operating condition of the hydraulic system.


·        Stainless steel case & Brass measuring system

·        Black coloured, fixed pointer

·        Movement brass plated, socket made of brass.

·        Bourdon- brass upto 35 bar & above SS 316L

·        Dry or filled with glycerine as desired



SPECIFICATIONS

Accuracy

+ 1.6% of F.S.

Ambient temp

- 25°C to + 65°C

Extended temp

Max 180°C

Operating pressure

75% of scale value

Pressure limit

< 100 bar: 125% of Max. Scale Value

Size

40mm, 50mm, 63mm, 80mm
